Description

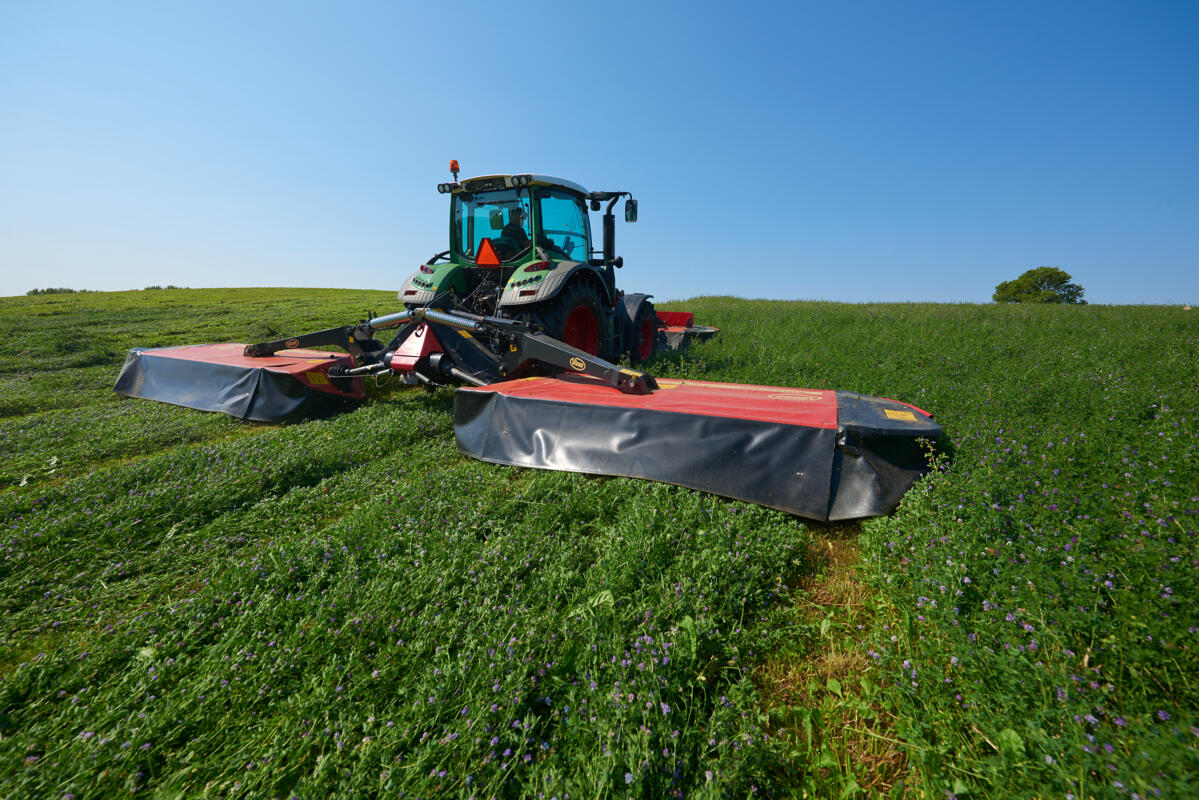

Vicon EXTRA 390 and 395 plain triple mower has an extensive working width of 8.7-9.5m paired with a very low weight design. EXTRA 390-395 are eco-friendly, energy saving solutions purposely built for low operating costs in terms of power and fuel consumption. Best possible ground following ability is achieved via the optional hydraulic spring adjustment. Easy to set, even on the go. The ability to fold the mower arms beyond 90 degrees gives an increased safety during transport. A low gravity point ensures excellent weight distribution and to ensure optimal overlap the mowing units can be mounted in two positions. The integrated parking foot ensures easy, convenient parking.
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model EXTRA | 390 | 395 | |
|---|---|---|---|
| Working width (m/ft) | 8.7(28’5”) | 9.5(31'2") | |
| Transport width (m) | <3.0 | <3.0 | |
| Transport height (m) | <4.0 | <4.0 | |
| Linkage (CAT) | 2/3 | 2/3 | |
| PTO (rpm) | 1000 | 1000 | |
| Min. power req. PTO output (kW/hp) | 105/140 | 110/150 | |
| Number of discs and knives | 16/48 | 16/48 |
