Description

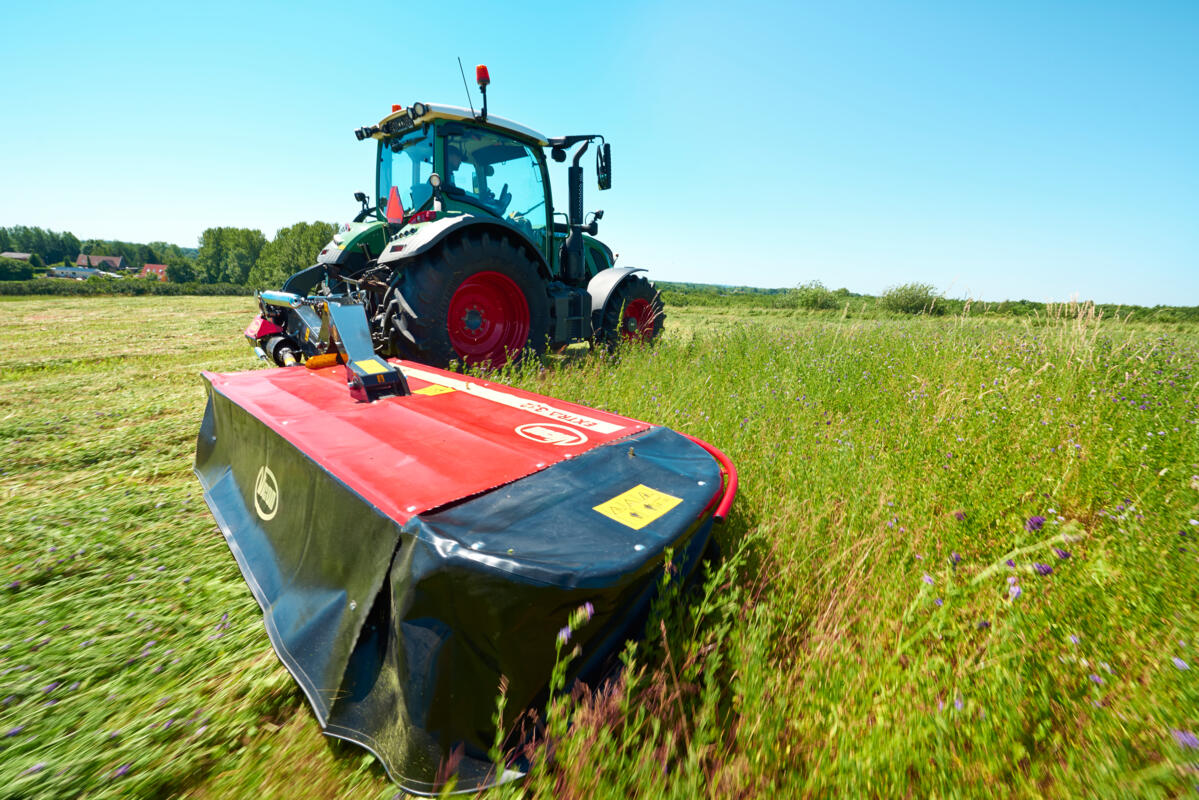

Vicon EXTRA 300 series rear mounted disc mowers, with 3.18-3.94m working width, has a clean and uncomplicated suspension design, ensuring low weight and minimum power requirement, making it ideal for farmers with smaller tractors. The large compensating spring in combination with the centre mounted design provides perfect flotation of the complete cutterbar. To offer maximum protection of the cutterbar, it is fitted with NonStop BreakAway solution. Optional on-the-go hydraulic adjustment of ground pressure. Simple and easy!
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model EXTRA | 328 | 332 | 336 | 340 | |
|---|---|---|---|---|---|
| Working width (m/ft) | 2.84(9'4") | 3.18(10’5”) | 3.50(11'6") | 3.94(12'11) | |
| Transport width (m) | 2.3 | 2.3 | 2.3 | 2.3 | |
| Transport height (m) | 2.8 | 3.3 | 3.7 | 3.7 | |
| Linkage (CAT) | 2/3 | 2/3 | 2/3 | 2/3 | |
| PTO (rpm) | 540/1000 | 540/1000 | 540/1000 | 540/1000 | |
| Min. power req. PTO output (kW/hp) | 37/50 | 40/55 | 44/60 | 51/70 | |
| Number of discs and knives | 8/24 | 8/24 | 10/30 | 10/30 |
Unable to load the table
