Vicon EXTRA 600F

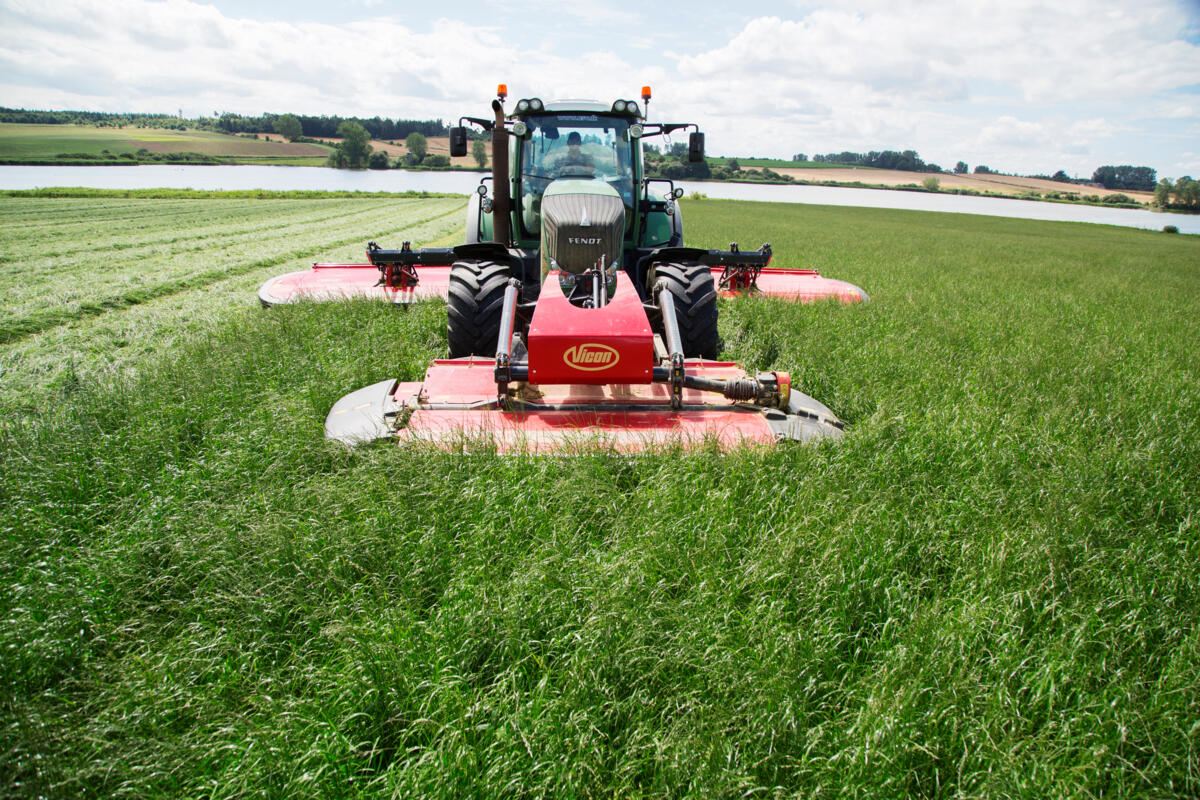

Front mounted disc mower conditioners with flexible mowing pattern.
Front mounted mower conditioners with innovative suspension.
Description
Vicon EXTRA 600F series, with SemiSwing, nylon or roller conditioner and 2.84-3.50m working width, features a floating suspension concept with three dimensional adaption, with excellent down and upwards ground following ability of 250mm and 420mm respectively in addition to a 24⁰ transverse adaptation ability. This ensures excellent adaptation to uneven ground contours and higher reachable speed. The suspension system ensures maximum protection of the cutterbar during operation. If hitting an obstacle the mower will move back and up.
Highlights
- SemiSwing, nylon or roller conditioning
- Innovative suspension design
- Flexible moving pattern, downwards movement of 250mm and upwards of 420mm.
- Variable conditioner rotor speed
- Excellent visibility during transport and work – the design of the suspension provides an undisturbed view.
- The innovative suspension design allows a transverse adaptation of 24⁰.
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model EXTRA | 628FT | 632FT | 632FR | 635FT | 635FR | |
|---|---|---|---|---|---|---|
| Conditioner type | SemiSwing | SemiSwing | Roller | SemiSwing | Roller | |
| Working width m(ft) | 2.84 (9’4”) | 3.18 (10’5”) | 3.18 (10’5”) | 3.50 (11’6”) | 3.50 (11’6”) | |
| Transport width m(ft) | 2.70 (8’9”) | 3.00 (9’8”) | 3.00 (9’8”) | 3.40 (11’2”) | 3.40 (11’2”) | |
| PTO (rpm) | 1000 | 1000 | 1000 | 1000 | 1000 | |
| PTO power req. min (kW/hp) | 50/70 | 50/70 | 60/80 | 66/90 | 66/90 | |
| Number of discs/knives | 8/24 | 8/24 | 8/24 | 10/30 | 10/30 |
